Tulejka zatrzaskowa
LCBS-9
- Materiał: Nylon 6/6, UL 94 V-2, RMS-01* lub Nylon 6/6, UL 94 V-0, RMS-19*
- Kolor: naturalny
- Minimum zakupu: 1000 szt.
* patrz specyfikacja materiałowa

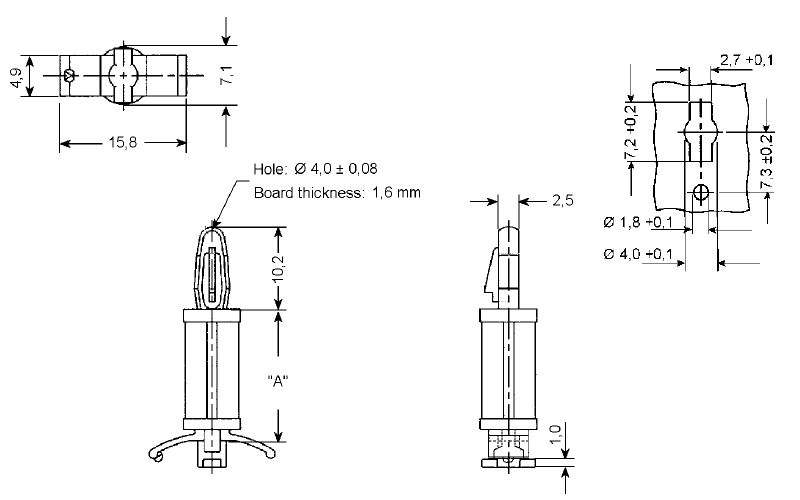

| Symbol |
Długość A |
Średn. otworu górnego ±0.08 |
Grubość panelu górnego | Zakres grubości panelu dolnego | Materiał | Klasa palności | Kolor |
|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | ||||
| LCBS-9-3-01 | 4.8 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-3-19 | 4.8 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-4-01 | 6.4 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-4-19 | 6.4 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-5-01 | 7.9 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-5-19 | 7.9 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-6-01 | 9.5 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-6-19 | 9.5 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-7-01 | 11.1 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-7-19 | 11.1 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-8-01 | 12.7 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-8-19 | 12.7 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-10-01 | 15.9 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-10-19 | 15.9 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-12-01 | 19.1 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-12-19 | 19.1 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-14-01 | 22.2 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-14-19 | 22.2 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-16-01 | 25.4 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-16-19 | 25.4 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-18-01 | 28.6 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-18-19 | 28.6 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-20-01 | 31.7 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-20-19 | 31.7 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
| LCBS-9-22-01 | 34.9 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-2 | naturalny |
| LCBS-9-22-19 | 34.9 | 4 | 1.6 | 0.8 - 1.6 | PA 66 | UL94 V-0 | naturalny |
