Prostokątne, skośne zaślepki do rur
T-ZKS
- Materiał: polietylen
- Kolor: czarny (RAL 9005)

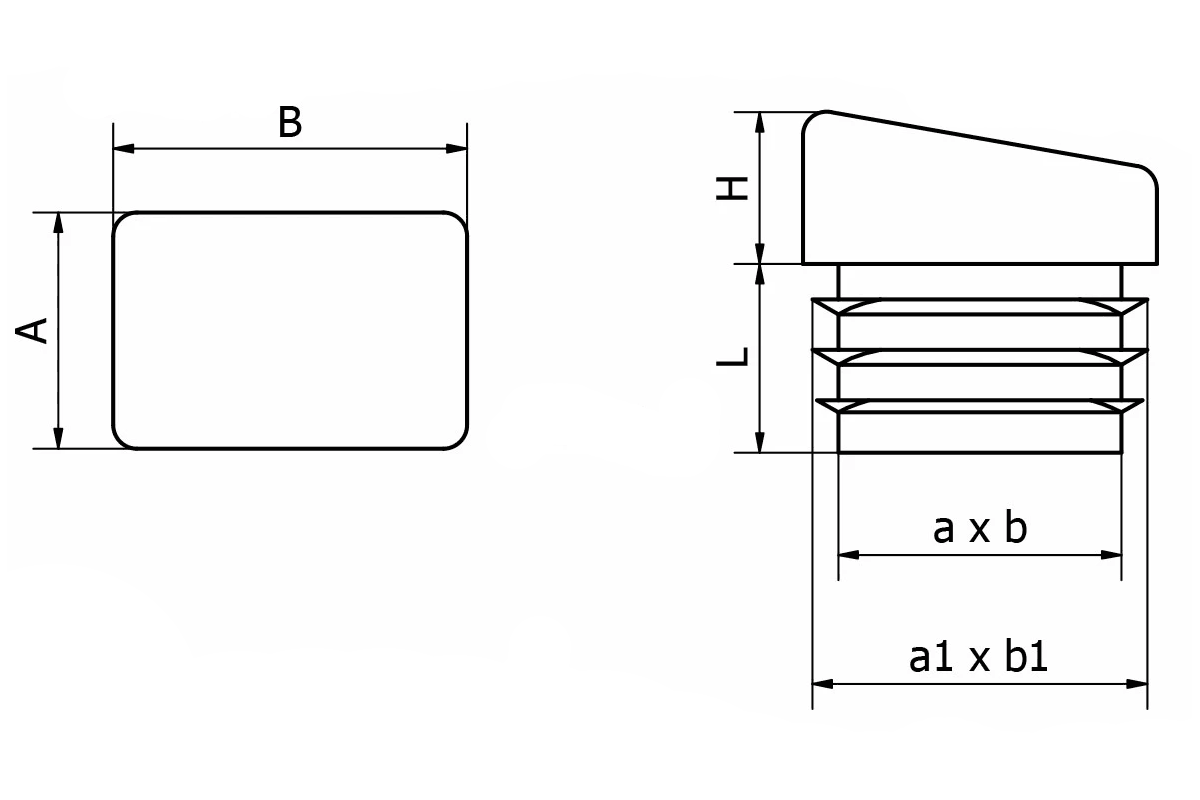

| Symbol | Wymiar rury | Zakres grubości ścianki rury |
Wymiary wkładki A × B |
H | a × b | a1 × b1 | L | Materiał | Kolor |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |||
| T-ZKS-15-20 | 20 × 15 | 1.5 - 2.0 | 20 × 15 | 9.3 | 15.5 × 10.5 | 18.5 × 13.5 | 12 | PE | czarny |
| T-ZKS-15-25 | 25 × 15 | 1.5 - 2.0 | 24.5 × 15.5 | 7 | 19.5 × 10.5 | 22.7 × 13.7 | 12 | PE | czarny |
| T-ZKS-15-30 | 30 × 15 | 1.5 - 2.0 | 30.1 × 15.4 | 8.3 | 25.8 × 10.8 | 28 × 13 | 12 | PE | czarny |
| T-ZKS-20-30 | 30 × 20 | 1.5 - 2.0 | 30 × 20.5 | 8.3 | 25.5 × 15 | 29.5 × 19.5 | 14.5 | PE | czarny |
