Stopy nastawne, ślizgacze meblowe z filcową podstawą
O-SLINF
- Materiał Nylon 6
- Kolor: czarny
- Obrotowa wkładka z filcową bazą, idalna do drewnianych podłóg

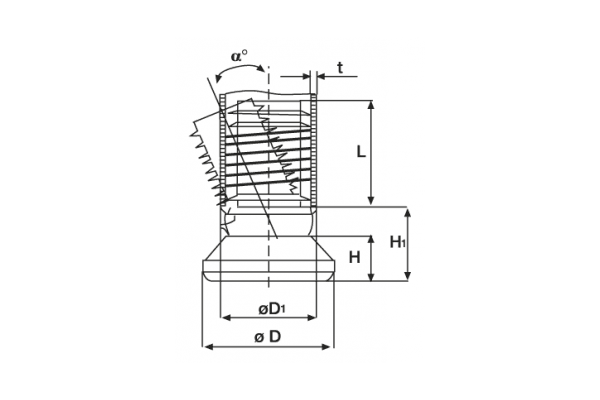

| Symbol |
Kąt α |
Średnica zewn. ØD |
ØD1 | H | H1 | L | t | Materiał | Kolor | Opakowanie |
|---|---|---|---|---|---|---|---|---|---|---|
| [°] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [szt./pcs] | |||
| O-SLINF-25-19 | 19 | 25 | 19 | - | - | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1500 |
| O-SLINF-25-20 | 19 | 25 | 20 | 10 | 18.5 | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1000 |
| O-SLINF-25-22 | 19 | 25 | 22 | 11 | 18.5 | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1000 |
| O-SLINF-25-25 | 19 | 25 | 25 | 11 | 18.5 | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1000 |
| O-SLINF-25-28 | 19 | 25 | 28 | - | - | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1000 |
| O-SLINF-30-19 | 19 | 30 | 19 | - | - | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1000 |
| O-SLINF-30-20 | 19 | 30 | 20 | 11 | 19.5 | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1000 |
| O-SLINF-30-22 | 19 | 30 | 22 | 11 | 19.5 | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1000 |
| O-SLINF-30-25 | 19 | 30 | 25 | 11 | 19 | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1000 |
| O-SLINF-30-28 | 19 | 30 | 28 | - | - | 24.5 | 1.5 - 2.0 | PA 6 | czarny | 1000 |
