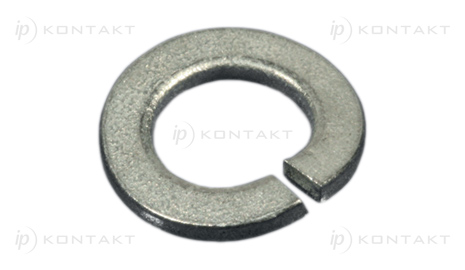

Metalowe podkładki sprężynujące DIN 128A
AR-POS128A
- Materiał: patrz tabela

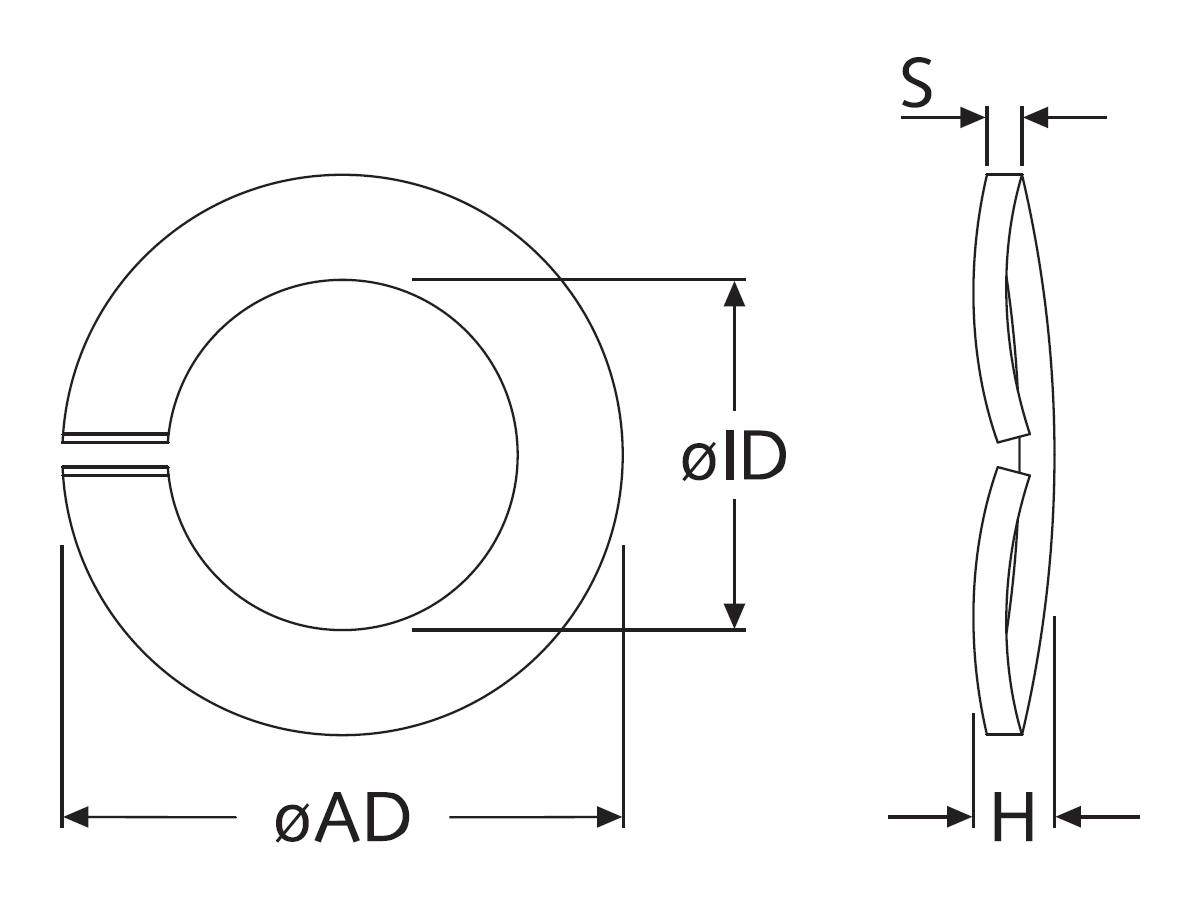

| Symbol | Dla gwintu |
Średnica wewn. ØID |
Średnica zewn. ØAD |
Wysokość H maks. |
S | Materiał |
|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | |||
| AR-POS128A-21283 | M2 | 2.1 | 4.4 | 0.9 | 0.5 | stal ocynkowana |
| AR-POS128A-21291 | M2 | 2.1 | 4.4 | 0.9 | 0.5 | stal nierdzewna A2 |
| AR-POS128A-21284 | M2.5 | 2.6 | 5.1 | 1.1 | 0.6 | stal ocynkowana |
| AR-POS128A-21292 | M2.5 | 2.6 | 5.1 | 1.1 | 0.6 | stal nierdzewna A2 |
| AR-POS128A-21285 | M3 | 3.1 | 6.2 | 1.3 | 0.7 | stal ocynkowana |
| AR-POS128A-21293 | M3 | 3.1 | 6.2 | 1.3 | 0.7 | stal nierdzewna A2 |
| AR-POS128A-21286 | M4 | 4.1 | 7.6 | 1.4 | 0.8 | stal ocynkowana |
| AR-POS128A-21294 | M4 | 4.1 | 7.6 | 1.4 | 0.8 | stal nierdzewna A2 |
| AR-POS128A-21287 | M5 | 5.1 | 9.2 | 1.7 | 1 | stal ocynkowana |
| AR-POS128A-21295 | M5 | 5.1 | 9.2 | 1.7 | 1 | stal nierdzewna A2 |
| AR-POS128A-21288 | M6 | 6.1 | 11.8 | 2.2 | 1.3 | stal ocynkowana |
| AR-POS128A-21296 | M6 | 6.1 | 11.8 | 2.2 | 1.3 | stal nierdzewna A2 |
| AR-POS128A-21289 | M8 | 8.1 | 14.8 | 2.8 | 1.6 | stal ocynkowana |
| AR-POS128A-21297 | M8 | 8.1 | 14.8 | 2.8 | 1.6 | stal nierdzewna A2 |
| AR-POS128A-21290 | M10 | 10.2 | 18.1 | 3.2 | 1.8 | stal ocynkowana |
| AR-POS128A-21298 | M10 | 10.2 | 18.1 | 3.2 | 1.8 | stal nierdzewna A2 |
