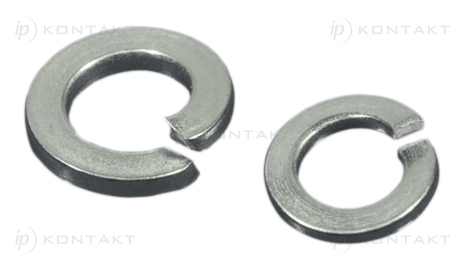

Metalowe podkładki sprężynujące DIN 127B
AR-POS127B
- Materiał: patrz tabela
| Symbol | Dla gwintu |

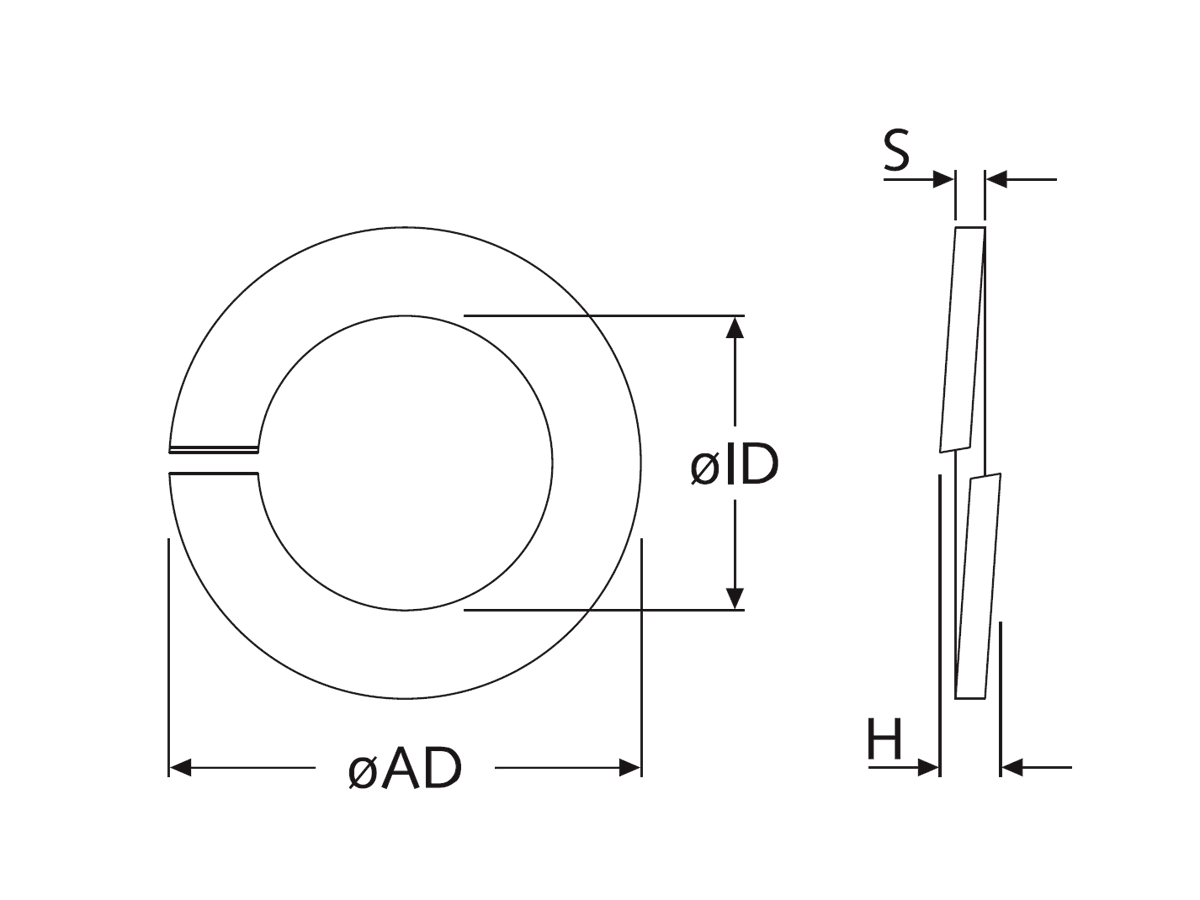

Średnica wewn. ØID |
Średnica zewn. ØAD |
Wysokość H maks. |
S | Materiał |
|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | |||
| AR-POS127B-28862 | M2 | 2.1 | 4.4 | 1.2 | 0.5 | stal ocynkowana |
| AR-POS127B-28863 | M2 | 2.1 | 4.4 | 1.2 | 0.5 | stal nierdzewna A2 |
| AR-POS127B-21262 | M2.5 | 2.6 | 5.1 | 1.4 | 0.6 | stal ocynkowana |
| AR-POS127B-21269 | M2.5 | 2.6 | 5.1 | 1.4 | 0.6 | stal nierdzewna A2 |
| AR-POS127B-21263 | M3 | 3.1 | 6.2 | 1.9 | 0.8 | stal ocynkowana |
| AR-POS127B-21270 | M3 | 3.1 | 6.2 | 1.9 | 0.8 | stal nierdzewna A2 |
| AR-POS127B-21264 | M4 | 4.1 | 7.6 | 2.1 | 0.9 | stal ocynkowana |
| AR-POS127B-21271 | M4 | 4.1 | 7.6 | 2.1 | 0.9 | stal nierdzewna A2 |
| AR-POS127B-21265 | M5 | 5.1 | 9.2 | 2.8 | 1.2 | stal ocynkowana |
| AR-POS127B-28242 | M5 | 5.1 | 9.2 | 2.8 | 1.2 | stal nierdzewna A2 |
| AR-POS127B-21266 | M6 | 6.1 | 11.8 | 3.8 | 1.6 | stal ocynkowana |
| AR-POS127B-28243 | M6 | 6.1 | 11.8 | 3.8 | 1.6 | stal nierdzewna A2 |
| AR-POS127B-21267 | M8 | 8.1 | 14.8 | 4.7 | 2 | stal ocynkowana |
| AR-POS127B-28864 | M8 | 8.1 | 14.8 | 4.7 | 2 | stal nierdzewna A2 |
| AR-POS127B-21268 | M10 | 10.2 | 18.1 | 5.2 | 2.2 | stal ocynkowana |
| AR-POS127B-28865 | M10 | 10.2 | 18.1 | 5.2 | 2.2 | stal nierdzewna A2 |
| AR-POS127B-48374 | UNC4-40 | 2.9 | 4.7 | 1.2 | 0.8 | stal ocynkowana |
