Wsporniki PCB, nylonowe
FP-9470
- Material: Nylon 6.6
- Kolor: naturalny
- Klasa palności: UL94V2
- Temperatura pracy: -35°C do +85°C
- Opakowanie: 1000 szt.
Producent: Fastpoint

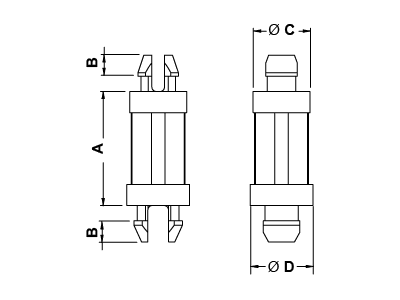

| Symbol |
Wysokość A |
B | C | D | Średn. otworu górnego | Średn. otworu dolnego | Grubość panelu górnego | Grubość panelu dolnego |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| 9470AA00 | 6.4 | 2.35 | 6.35 | 7 | 4 | 4 | 1.6 | 1.6 |
| 9471AA00 | 9.5 | 2.35 | 6.35 | 7 | 4 | 4 | 1.6 | 1.6 |
| 9472AA00 | 10 | 2.35 | 6.35 | 7 | 4 | 4 | 1.6 | 1.6 |
| 9473AA00 | 12.7 | 2.35 | 6.35 | 7 | 4 | 4 | 1.6 | 1.6 |
| 9474AA00 | 15.9 | 2.35 | 6.35 | 7 | 4 | 4 | 1.6 | 1.6 |
| 9475AA00 | 19.1 | 2.35 | 6.35 | 7 | 4 | 4 | 1.6 | 1.6 |
| 9476AA00 | 22.2 | 2.35 | 6.35 | 7 | 4 | 4 | 1.6 | 1.6 |
| 9477AA00 | 25.4 | 2.35 | 6.35 | 7 | 4 | 4 | 1.6 | 1.6 |
| 9486AA00 | 6.4 | 2.35 | 6.35 | 7 | 4 | 4.8 | 1.6 | 1.6 |
| 9487AA00 | 9.5 | 2.35 | 6.35 | 7 | 4 | 4.8 | 1.6 | 1.6 |
| 9488AA00 | 12.7 | 2.35 | 6.35 | 7 | 4 | 4.8 | 1.6 | 1.6 |
| 9489AA00 | 15.9 | 2.35 | 6.35 | 7 | 4 | 4.8 | 1.6 | 1.6 |
| 9490AA00 | 19.1 | 2.35 | 6.35 | 7 | 4 | 4.8 | 1.6 | 1.6 |
| 9491AA00 | 22.2 | 2.35 | 6.35 | 7 | 4 | 4.8 | 1.6 | 1.6 |
| 9492AA00 | 25.4 | 2.35 | 6.35 | 7 | 4 | 4.8 | 1.6 | 1.6 |
| 9494AA00 | 6.4 | 2.35 | 6.35 | 7.1 | 4.8 | 4.8 | 1.6 | 1.6 |
| 9495AA00 | 9.5 | 2.35 | 6.35 | 7.1 | 4.8 | 4.8 | 1.6 | 1.6 |
| 9496AA00 | 12.7 | 2.35 | 6.35 | 7.1 | 4.8 | 4.8 | 1.6 | 1.6 |
| 9497AA00 | 15.9 | 2.35 | 6.35 | 7.1 | 4.8 | 4.8 | 1.6 | 1.6 |
| 9498AA00 | 19.1 | 2.35 | 6.35 | 7.1 | 4.8 | 4.8 | 1.6 | 1.6 |
| 9499AA00 | 22.2 | 2.35 | 6.35 | 7.1 | 4.8 | 4.8 | 1.6 | 1.6 |
| 8915AA00 | 25.4 | 2.35 | 6.35 | 7.1 | 4.8 | 4.8 | 1.6 | 1.6 |
