Tulejki okrągłe, zabezpieczone przed wypadaniem
BL-TZPW
- Materiał: Nylon
- Kolor: naturalny
- Materiały dostępne na specjalne zamówienie: PE, PP, POM, PE
- Czarny i inne kolory dostępne na specjalne zamówienie
- Służą do wstępnego montażu śrub i wkrętów przy jednoczesnym zmniejszeniu ryzyka ich zagubienia
- Dobra izolacja elektryczna

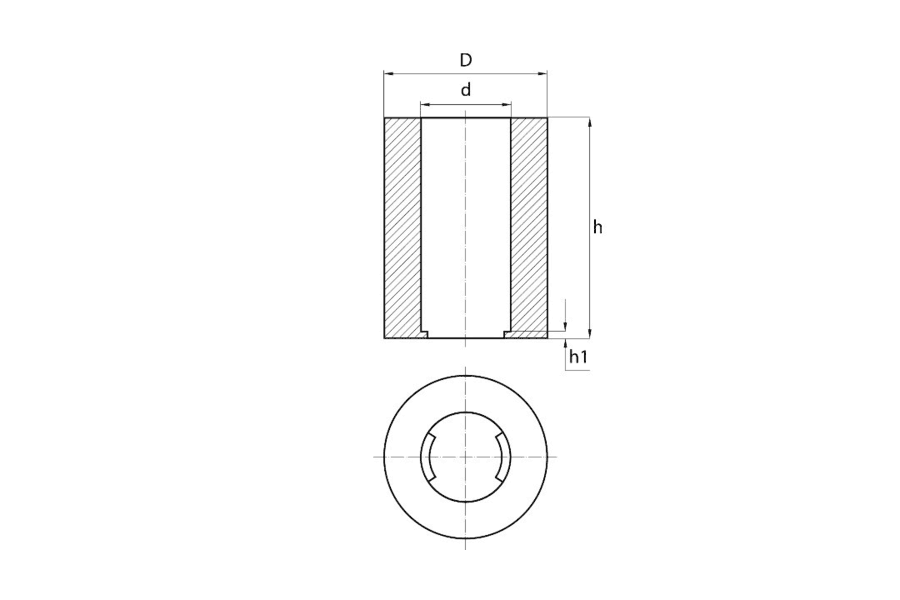

| Symbol | Gwint | d | D | h | h1 | Opakowanie |
|---|---|---|---|---|---|---|
| [mm] | [szt.] | |||||
| BL-TZPW-M3-060-050 | M3 | 3.2 | 6.0 | 5.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-060 | M3 | 3.2 | 6.0 | 6.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-070 | M3 | 3.2 | 6.0 | 7.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-075 | M3 | 3.2 | 6.0 | 7.5 | 0.5 | 10000 |
| BL-TZPW-M3-060-080 | M3 | 3.2 | 6.0 | 8.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-090 | M3 | 3.2 | 6.0 | 9.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-100 | M3 | 3.2 | 6.0 | 10.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-110 | M3 | 3.2 | 6.0 | 11.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-120 | M3 | 3.2 | 6.0 | 12.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-125 | M3 | 3.2 | 6.0 | 12.5 | 0.5 | 10000 |
| BL-TZPW-M3-060-130 | M3 | 3.2 | 6.0 | 13.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-140 | M3 | 3.2 | 6.0 | 14.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-150 | M3 | 3.2 | 6.0 | 15.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-160 | M3 | 3.2 | 6.0 | 16.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-170 | M3 | 3.2 | 6.0 | 17.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-175 | M3 | 3.2 | 6.0 | 17.5 | 0.5 | 10000 |
| BL-TZPW-M3-060-180 | M3 | 3.2 | 6.0 | 18.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-190 | M3 | 3.2 | 6.0 | 19.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-200 | M3 | 3.2 | 6.0 | 20.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-210 | M3 | 3.2 | 6.0 | 21.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-220 | M3 | 3.2 | 6.0 | 22.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-225 | M3 | 3.2 | 6.0 | 22.5 | 0.5 | 10000 |
| BL-TZPW-M3-060-230 | M3 | 3.2 | 6.0 | 23.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-240 | M3 | 3.2 | 6.0 | 24.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-250 | M3 | 3.2 | 6.0 | 25.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-260 | M3 | 3.2 | 6.0 | 26.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-270 | M3 | 3.2 | 6.0 | 27.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-280 | M3 | 3.2 | 6.0 | 28.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-290 | M3 | 3.2 | 6.0 | 29.0 | 0.5 | 10000 |
| BL-TZPW-M3-060-300 | M3 | 3.2 | 6.0 | 30.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-050 | M4 | 4.3 | 8.0 | 5.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-060 | M4 | 4.3 | 8.0 | 6.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-070 | M4 | 4.3 | 8.0 | 7.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-075 | M4 | 4.3 | 8.0 | 7.5 | 0.5 | 10000 |
| BL-TZPW-M4-080-080 | M4 | 4.3 | 8.0 | 8.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-090 | M4 | 4.3 | 8.0 | 9.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-100 | M4 | 4.3 | 8.0 | 10.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-110 | M4 | 4.3 | 8.0 | 11.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-120 | M4 | 4.3 | 8.0 | 12.0 | 0.5 | 10000 |
| Symbol | Gwint | d | D | h | h1 | Opakowanie |
| [mm] | [szt.] | |||||
| BL-TZPW-M4-080-125 | M4 | 4.3 | 8.0 | 12.5 | 0.5 | 10000 |
| BL-TZPW-M4-080-130 | M4 | 4.3 | 8.0 | 13.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-140 | M4 | 4.3 | 8.0 | 14.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-150 | M4 | 4.3 | 8.0 | 15.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-160 | M4 | 4.3 | 8.0 | 16.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-170 | M4 | 4.3 | 8.0 | 17.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-175 | M4 | 4.3 | 8.0 | 17.5 | 0.5 | 10000 |
| BL-TZPW-M4-080-180 | M4 | 4.3 | 8.0 | 18.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-190 | M4 | 4.3 | 8.0 | 19.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-200 | M4 | 4.3 | 8.0 | 20.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-210 | M4 | 4.3 | 8.0 | 21.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-220 | M4 | 4.3 | 8.0 | 22.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-225 | M4 | 4.3 | 8.0 | 22.5 | 0.5 | 10000 |
| BL-TZPW-M4-080-230 | M4 | 4.3 | 8.0 | 23.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-240 | M4 | 4.3 | 8.0 | 24.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-250 | M4 | 4.3 | 8.0 | 25.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-260 | M4 | 4.3 | 8.0 | 26.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-270 | M4 | 4.3 | 8.0 | 27.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-280 | M4 | 4.3 | 8.0 | 28.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-290 | M4 | 4.3 | 8.0 | 29.0 | 0.5 | 10000 |
| BL-TZPW-M4-080-300 | M4 | 4.3 | 8.0 | 30.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-050 | M4 | 4.3 | 10.0 | 5.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-060 | M4 | 4.3 | 10.0 | 6.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-070 | M4 | 4.3 | 10.0 | 7.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-075 | M4 | 4.3 | 10.0 | 7.5 | 0.5 | 10000 |
| BL-TZPW-M4-100-080 | M4 | 4.3 | 10.0 | 8.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-090 | M4 | 4.3 | 10.0 | 9.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-100 | M4 | 4.3 | 10.0 | 10.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-110 | M4 | 4.3 | 10.0 | 11.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-120 | M4 | 4.3 | 10.0 | 12.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-125 | M4 | 4.3 | 10.0 | 12.5 | 0.5 | 10000 |
| BL-TZPW-M4-100-130 | M4 | 4.3 | 10.0 | 13.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-140 | M4 | 4.3 | 10.0 | 14.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-150 | M4 | 4.3 | 10.0 | 15.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-160 | M4 | 4.3 | 10.0 | 16.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-170 | M4 | 4.3 | 10.0 | 17.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-175 | M4 | 4.3 | 10.0 | 17.5 | 0.5 | 10000 |
| BL-TZPW-M4-100-180 | M4 | 4.3 | 10.0 | 18.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-190 | M4 | 4.3 | 10.0 | 19.0 | 0.5 | 10000 |
| Symbol | Gwint | d | D | h | h1 | Opakowanie |
| [mm] | [szt.] | |||||
| BL-TZPW-M4-100-200 | M4 | 4.3 | 10.0 | 20.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-210 | M4 | 4.3 | 10.0 | 21.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-220 | M4 | 4.3 | 10.0 | 22.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-225 | M4 | 4.3 | 10.0 | 22.5 | 0.5 | 10000 |
| BL-TZPW-M4-100-230 | M4 | 4.3 | 10.0 | 23.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-240 | M4 | 4.3 | 10.0 | 24.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-250 | M4 | 4.3 | 10.0 | 25.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-260 | M4 | 4.3 | 10.0 | 26.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-270 | M4 | 4.3 | 10.0 | 27.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-280 | M4 | 4.3 | 10.0 | 28.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-290 | M4 | 4.3 | 10.0 | 29.0 | 0.5 | 10000 |
| BL-TZPW-M4-100-300 | M4 | 4.3 | 10.0 | 30.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-050 | M5 | 5.3 | 10.0 | 5.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-060 | M5 | 5.3 | 10.0 | 6.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-070 | M5 | 5.3 | 10.0 | 7.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-075 | M5 | 5.3 | 10.0 | 7.5 | 0.5 | 10000 |
| BL-TZPW-M5-100-080 | M5 | 5.3 | 10.0 | 8.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-090 | M5 | 5.3 | 10.0 | 9.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-100 | M5 | 5.3 | 10.0 | 10.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-110 | M5 | 5.3 | 10.0 | 11.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-120 | M5 | 5.3 | 10.0 | 12.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-125 | M5 | 5.3 | 10.0 | 12.5 | 0.5 | 10000 |
| BL-TZPW-M5-100-130 | M5 | 5.3 | 10.0 | 13.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-140 | M5 | 5.3 | 10.0 | 14.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-150 | M5 | 5.3 | 10.0 | 15.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-160 | M5 | 5.3 | 10.0 | 16.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-170 | M5 | 5.3 | 10.0 | 17.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-175 | M5 | 5.3 | 10.0 | 17.5 | 0.5 | 10000 |
| BL-TZPW-M5-100-180 | M5 | 5.3 | 10.0 | 18.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-190 | M5 | 5.3 | 10.0 | 19.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-200 | M5 | 5.3 | 10.0 | 20.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-210 | M5 | 5.3 | 10.0 | 21.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-220 | M5 | 5.3 | 10.0 | 22.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-225 | M5 | 5.3 | 10.0 | 22.5 | 0.5 | 10000 |
| BL-TZPW-M5-100-230 | M5 | 5.3 | 10.0 | 23.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-240 | M5 | 5.3 | 10.0 | 24.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-250 | M5 | 5.3 | 10.0 | 25.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-260 | M5 | 5.3 | 10.0 | 26.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-270 | M5 | 5.3 | 10.0 | 27.0 | 0.5 | 10000 |
| Symbol | Gwint | d | D | h | h1 | Opakowanie |
| [mm] | [szt.] | |||||
| BL-TZPW-M5-100-280 | M5 | 5.3 | 10.0 | 28.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-290 | M5 | 5.3 | 10.0 | 29.0 | 0.5 | 10000 |
| BL-TZPW-M5-100-300 | M5 | 5.3 | 10.0 | 30.0 | 0.5 | 10000 |
| BL-TZPW-M6-125-050 | M6 | 6.4 | 12.5 | 5.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-060 | M6 | 6.4 | 12.5 | 6.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-070 | M6 | 6.4 | 12.5 | 7.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-075 | M6 | 6.4 | 12.5 | 7.5 | 0.8 | 10000 |
| BL-TZPW-M6-125-080 | M6 | 6.4 | 12.5 | 8.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-090 | M6 | 6.4 | 12.5 | 9.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-100 | M6 | 6.4 | 12.5 | 10.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-110 | M6 | 6.4 | 12.5 | 11.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-120 | M6 | 6.4 | 12.5 | 12.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-125 | M6 | 6.4 | 12.5 | 12.5 | 0.8 | 10000 |
| BL-TZPW-M6-125-130 | M6 | 6.4 | 12.5 | 13.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-140 | M6 | 6.4 | 12.5 | 14.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-150 | M6 | 6.4 | 12.5 | 15.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-160 | M6 | 6.4 | 12.5 | 16.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-170 | M6 | 6.4 | 12.5 | 17.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-175 | M6 | 6.4 | 12.5 | 17.5 | 0.8 | 10000 |
| BL-TZPW-M6-125-180 | M6 | 6.4 | 12.5 | 18.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-190 | M6 | 6.4 | 12.5 | 19.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-200 | M6 | 6.4 | 12.5 | 20.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-210 | M6 | 6.4 | 12.5 | 21.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-220 | M6 | 6.4 | 12.5 | 22.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-225 | M6 | 6.4 | 12.5 | 22.5 | 0.8 | 10000 |
| BL-TZPW-M6-125-230 | M6 | 6.4 | 12.5 | 23.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-240 | M6 | 6.4 | 12.5 | 24.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-250 | M6 | 6.4 | 12.5 | 25.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-260 | M6 | 6.4 | 12.5 | 26.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-270 | M6 | 6.4 | 12.5 | 27.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-280 | M6 | 6.4 | 12.5 | 28.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-290 | M6 | 6.4 | 12.5 | 29.0 | 0.8 | 10000 |
| BL-TZPW-M6-125-300 | M6 | 6.4 | 12.5 | 30.0 | 0.8 | 10000 |
| BL-TZPW-M8-120-050 | M8 | 8.2 | 12.0 | 5.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-060 | M8 | 8.2 | 12.0 | 6.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-070 | M8 | 8.2 | 12.0 | 7.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-075 | M8 | 8.2 | 12.0 | 7.5 | 0.5 | 10000 |
| BL-TZPW-M8-120-080 | M8 | 8.2 | 12.0 | 8.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-090 | M8 | 8.2 | 12.0 | 9.0 | 0.5 | 10000 |
| Symbol | Gwint | d | D | h | h1 | Opakowanie |
| [mm] | [szt.] | |||||
| BL-TZPW-M8-120-100 | M8 | 8.2 | 12.0 | 10.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-110 | M8 | 8.2 | 12.0 | 11.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-120 | M8 | 8.2 | 12.0 | 12.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-125 | M8 | 8.2 | 12.0 | 12.5 | 0.5 | 10000 |
| BL-TZPW-M8-120-130 | M8 | 8.2 | 12.0 | 13.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-140 | M8 | 8.2 | 12.0 | 14.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-150 | M8 | 8.2 | 12.0 | 15.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-160 | M8 | 8.2 | 12.0 | 16.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-170 | M8 | 8.2 | 12.0 | 17.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-175 | M8 | 8.2 | 12.0 | 17.5 | 0.5 | 10000 |
| BL-TZPW-M8-120-180 | M8 | 8.2 | 12.0 | 18.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-190 | M8 | 8.2 | 12.0 | 19.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-200 | M8 | 8.2 | 12.0 | 20.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-210 | M8 | 8.2 | 12.0 | 21.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-220 | M8 | 8.2 | 12.0 | 22.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-225 | M8 | 8.2 | 12.0 | 22.5 | 0.5 | 10000 |
| BL-TZPW-M8-120-230 | M8 | 8.2 | 12.0 | 23.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-240 | M8 | 8.2 | 12.0 | 24.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-250 | M8 | 8.2 | 12.0 | 25.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-260 | M8 | 8.2 | 12.0 | 26.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-270 | M8 | 8.2 | 12.0 | 27.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-280 | M8 | 8.2 | 12.0 | 28.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-290 | M8 | 8.2 | 12.0 | 29.0 | 0.5 | 10000 |
| BL-TZPW-M8-120-300 | M8 | 8.2 | 12.0 | 30.0 | 0.5 | 10000 |
| BL-TZPW-M8-170-050 | M8 | 8.4 | 17.0 | 5.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-060 | M8 | 8.4 | 17.0 | 6.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-070 | M8 | 8.4 | 17.0 | 7.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-075 | M8 | 8.4 | 17.0 | 7.5 | 0.8 | 10000 |
| BL-TZPW-M8-170-080 | M8 | 8.4 | 17.0 | 8.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-090 | M8 | 8.4 | 17.0 | 9.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-100 | M8 | 8.4 | 17.0 | 10.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-110 | M8 | 8.4 | 17.0 | 11.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-120 | M8 | 8.4 | 17.0 | 12.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-125 | M8 | 8.4 | 17.0 | 12.5 | 0.8 | 10000 |
| BL-TZPW-M8-170-130 | M8 | 8.4 | 17.0 | 13.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-140 | M8 | 8.4 | 17.0 | 14.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-150 | M8 | 8.4 | 17.0 | 15.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-160 | M8 | 8.4 | 17.0 | 16.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-170 | M8 | 8.4 | 17.0 | 17.0 | 0.8 | 10000 |
| Symbol | Gwint | d | D | h | h1 | Opakowanie |
| [mm] | [szt.] | |||||
| BL-TZPW-M8-170-175 | M8 | 8.4 | 17.0 | 17.5 | 0.8 | 10000 |
| BL-TZPW-M8-170-180 | M8 | 8.4 | 17.0 | 18.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-190 | M8 | 8.4 | 17.0 | 19.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-200 | M8 | 8.4 | 17.0 | 20.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-210 | M8 | 8.4 | 17.0 | 21.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-220 | M8 | 8.4 | 17.0 | 22.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-225 | M8 | 8.4 | 17.0 | 22.5 | 0.8 | 10000 |
| BL-TZPW-M8-170-230 | M8 | 8.4 | 17.0 | 23.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-240 | M8 | 8.4 | 17.0 | 24.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-250 | M8 | 8.4 | 17.0 | 25.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-260 | M8 | 8.4 | 17.0 | 26.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-270 | M8 | 8.4 | 17.0 | 27.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-280 | M8 | 8.4 | 17.0 | 28.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-290 | M8 | 8.4 | 17.0 | 29.0 | 0.8 | 10000 |
| BL-TZPW-M8-170-300 | M8 | 8.4 | 17.0 | 30.0 | 0.8 | 10000 |
| BL-TZPW-M10-200-050 | M10 | 10.5 | 20.0 | 5.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-060 | M10 | 10.5 | 20.0 | 6.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-070 | M10 | 10.5 | 20.0 | 7.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-075 | M10 | 10.5 | 20.0 | 7.5 | 0.7 | 10000 |
| BL-TZPW-M10-200-080 | M10 | 10.5 | 20.0 | 8.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-090 | M10 | 10.5 | 20.0 | 9.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-100 | M10 | 10.5 | 20.0 | 10.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-110 | M10 | 10.5 | 20.0 | 11.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-120 | M10 | 10.5 | 20.0 | 12.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-125 | M10 | 10.5 | 20.0 | 12.5 | 0.7 | 10000 |
| BL-TZPW-M10-200-130 | M10 | 10.5 | 20.0 | 13.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-140 | M10 | 10.5 | 20.0 | 14.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-150 | M10 | 10.5 | 20.0 | 15.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-160 | M10 | 10.5 | 20.0 | 16.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-170 | M10 | 10.5 | 20.0 | 17.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-175 | M10 | 10.5 | 20.0 | 17.5 | 0.7 | 10000 |
| BL-TZPW-M10-200-180 | M10 | 10.5 | 20.0 | 18.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-190 | M10 | 10.5 | 20.0 | 19.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-200 | M10 | 10.5 | 20.0 | 20.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-210 | M10 | 10.5 | 20.0 | 21.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-220 | M10 | 10.5 | 20.0 | 22.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-225 | M10 | 10.5 | 20.0 | 22.5 | 0.7 | 10000 |
| BL-TZPW-M10-200-230 | M10 | 10.5 | 20.0 | 23.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-240 | M10 | 10.5 | 20.0 | 24.0 | 0.7 | 10000 |
| Symbol | Gwint | d | D | h | h1 | Opakowanie |
| [mm] | [szt.] | |||||
| BL-TZPW-M10-200-250 | M10 | 10.5 | 20.0 | 25.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-260 | M10 | 10.5 | 20.0 | 26.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-270 | M10 | 10.5 | 20.0 | 27.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-280 | M10 | 10.5 | 20.0 | 28.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-290 | M10 | 10.5 | 20.0 | 29.0 | 0.7 | 10000 |
| BL-TZPW-M10-200-300 | M10 | 10.5 | 20.0 | 30.0 | 0.7 | 10000 |
