Uchwyty kablowe powlekane winylem, Heyco
H-VCSC
- Materiał korpusu: Stal miekka, galwanizowana, grubość 0.5 mm
- Material powłoki: Miękkie PCW, minimalna grubość 0.8 mm
- Elastyczna, miękka stal łatwo się wygina i formuje, aby uzyskać pożądany kształt i średnicę.
- Powłoka winylowa zarówno chwyta, jak i izoluje wiązki kabli lub przewodów.
- Typ 1: mocowanie za pomocą śruby
- Typ 2: samoprzylepne
Producent: Heyco

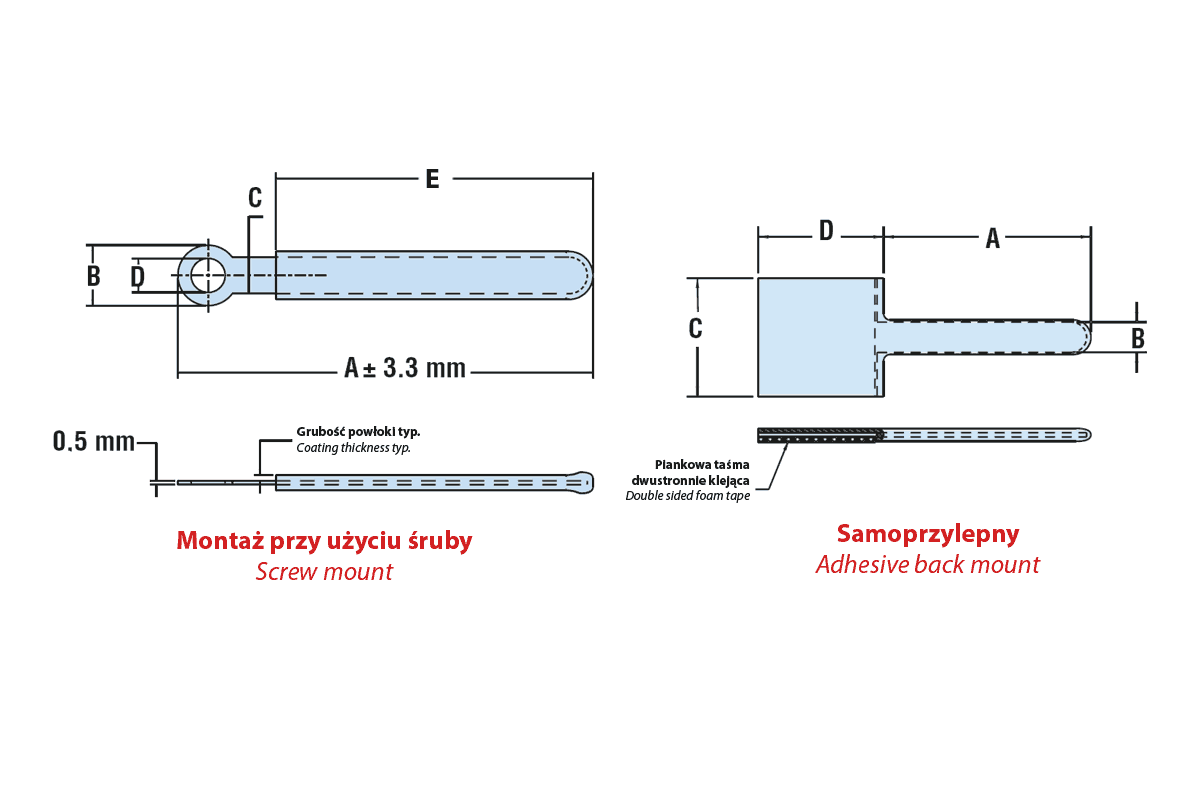

| Symbol | A | B | C | D | E | Typ/Type | Materiał |
|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | |||
| H-12067 | 22.1 | 8.1 | 4.6 | 4.6 | 11.9 | 1 | stal + PVC |
| H-12068 | 27.9 | 8.1 | 3 | 3 | 18 | 1 | stal + PVC |
| H-12069 | 34 | 6.1 | 2 | 3 | 23.9 | 1 | stal + PVC |
| H-12070 | 35.1 | 8.1 | 5.1 | 3.6 | 24.9 | 1 | stal + PVC |
| H-12071 | 39.9 | 8.1 | 3 | 3.6 | 30 | 1 | stal + PVC |
| H-12072 | 45 | 8.9 | 4.1 | 4.3 | 35.1 | 1 | stal + PVC |
| H-12073 | 48 | 6.1 | 2 | 3 | 39.9 | 1 | stal + PVC |
| H-12074 | 54.1 | 6.1 | 3.6 | 3.3 | 46 | 1 | stal + PVC |
| H-12075 | 54.1 | 8.1 | 4.8 | 4.6 | 41.9 | 1 | stal + PVC |
| H-12076 | 64 | 8.1 | 5.1 | 4.3 | 53.1 | 1 | stal + PVC |
| H-12077 | 66 | 7.9 | 4.6 | 3.3 | 55.1 | 1 | stal + PVC |
| H-12078 | 75.9 | 8.1 | 4.6 | 4.6 | 65 | 1 | stal + PVC |
| H-12079 | 75.9 | 10.9 | 5.1 | 7.1 | 62 | 1 | stal + PVC |
| H-12080 | 84.1 | 8.1 | 4.6 | 4.6 | 71.9 | 1 | stal + PVC |
| H-12081 | 126 | 8.1 | 6.1 | 4.6 | 112 | 1 | stal + PVC |
| H-12082 | 18 | 2 | 7.9 | 8.9 | - | 2 | stal + PVC |
| H-12083 | 24.9 | 3.6 | 14 | 14 | - | 2 | stal + PVC |
| H-12084 | 39.9 | 4.1 | 19.1 | 20.1 | - | 2 | stal + PVC |
