Otwarta osłona krawędzi
PGSC
- Material: Nylon 6/6 UL94 V-2, RMS-01*
- Standard pack: see table

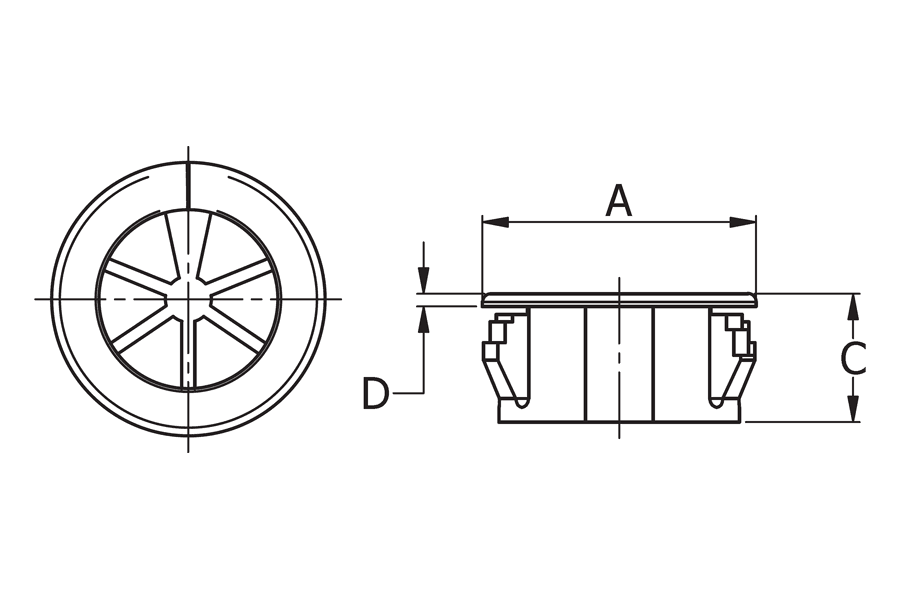

| Symbol | Mounting hole diameter range | Panel thickness range | A | Max. cable bundle diameter | C | D | Material | Flammability | Color | Standard pack |
|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [szt./pcs] | ||||
| PGSC-1319A | 19.0 - 19.1 | 0.8-3.0 | 21.8 | 12.7 | 9.9 | 1 | PA 66 | UL94 V-2 | black | 500 |
| PGSC-1422A | 22.2 - 22.4 | 0.8-3.0 | 23.8 | 14.3 | 11.5 | 1 | PA 66 | UL94 V-2 | black | 200 |
| PGSC-1926A | 25.4 - 25.5 | 0.8-3.0 | 27 | 19 | 11.5 | 1 | PA 66 | UL94 V-2 | black | 200 |
| PGSC-2128A | 27.8 - 28.0 | 0.8-3.0 | 29.5 | 20.7 | 11.5 | 1 | PA 66 | UL94 V-2 | black | 200 |
