Stopki radełkowane

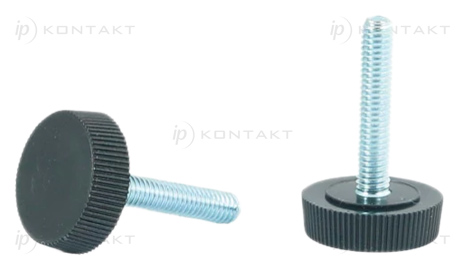

T-STRAD
- Material: polypropylene
- Colour: black (RAL 9005)
| Symbol | Base diameter |
Metric thread M |
Stud length H |
Base height |
|---|---|---|---|---|
| [mm] | [mm] | [mm] | ||
| T-STRAD-20-M5-13 | 20 | M5 | 13 | 7.8 |
| T-STRAD-20-M5-20 | 20 | M5 | 20 | 7.8 |
| T-STRAD-20-M5-30 | 20 | M5 | 30 | 7.8 |
| T-STRAD-20-M6-20 | 20 | M6 | 20 | 7.8 |
| T-STRAD-20-M6-30 | 20 | M6 | 30 | 7.8 |
| T-STRAD-20-M6-40 | 20 | M6 | 40 | 7.8 |
| T-STRAD-20-M8-20 | 20 | M8 | 20 | 7.8 |
| T-STRAD-20-M8-30 | 20 | M8 | 30 | 7.8 |
| T-STRAD-20-M8-40 | 20 | M8 | 40 | 7.8 |
| T-STRAD-20-M10-20 | 20 | M10 | 20 | 7.8 |
| T-STRAD-20-M10-30 | 20 | M10 | 30 | 7.8 |
| T-STRAD-20-M10-40 | 20 | M10 | 40 | 7.8 |
| T-STRAD-25-M5-20 | 25 | M5 | 20 | 7.8 |
| T-STRAD-25-M5-30 | 25 | M5 | 30 | 7.8 |
| T-STRAD-25-M6-20 | 25 | M6 | 20 | 7.8 |
| T-STRAD-25-M6-30 | 25 | M6 | 30 | 7.8 |
| T-STRAD-25-M6-40 | 25 | M6 | 40 | 7.8 |
| T-STRAD-25-M8-20 | 25 | M8 | 20 | 7.8 |
| T-STRAD-25-M8-30 | 25 | M8 | 30 | 7.8 |
| T-STRAD-25-M8-40 | 25 | M8 | 40 | 7.8 |
| T-STRAD-25-M10-20 | 25 | M10 | 20 | 7.8 |
| T-STRAD-25-M10-30 | 25 | M10 | 30 | 7.8 |
| T-STRAD-25-M10-40 | 25 | M10 | 40 | 7.8 |
