Plastikowa przelotka kablowa - Fastpoint
FP-0132
- Material: PA6.6 UL94V2
- Color: natural
- Working temperature: -35°C to +85°C
- Standard pack: 1000 pcs
Producent: Fastpoint

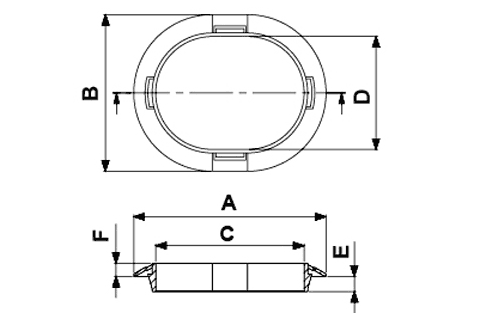

| Symbol | A | B | C | D | E | F | Mounting hole dimentions | Panel thickness range | Material | Flammability | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||||
| 0132AA00 | 53 | 43 | 40 | 30 | 2 | 6 | 45.0 x 35.5 | 0.5 - 1.2 | PA 66 | UL94 V-2 | natural |
