Osłona krawędzi - Fastpoint
FP-8187
- Material: PA 6.6 UL94V2
- Color: black
- Working temperature: -35°C - 85°C
- On special order:
- Material: PA 6.6 heat stabilized, workking temperature -40°C - 125°C
- Material: PA 4.6 high temperature, workking temperature: -40°C - 150°C
- Standard pack: 1000 pcs
Producent: Fastpoint

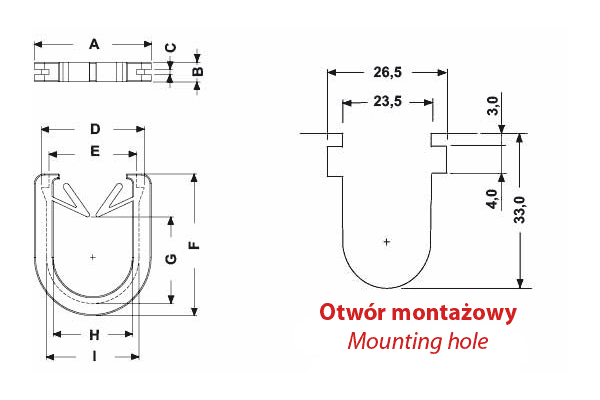

| Symbol | A | B | C | D | E | F | G | H | I | Material | Flammability | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||||
| 8187AA01 | 29.6 | 5 | 1.3 | 26.1 | 22.2 | 35.9 | 21.9 | 20 | 23.4 | PA 66 | UL94 V-2 | black |
| 12966AA01 | 29.6 | 5.8 | 2.1 | 26.1 | 22.2 | 35.9 | 21.9 | 20 | 23.4 | PA 66 | UL94 V-2 | black |
