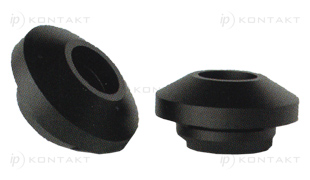

Wciskane przepusty kablowe
FP-16464
- Material: TPE
- Colour: black (RAL 9011), grey (RAL 7065), white
- Working temperature: -40°C to +100°C
- Protection grade: IP67
- For mounting holes with diameters of 100 and 120 mm protecton grade is IP54
Producent: Fastpoint

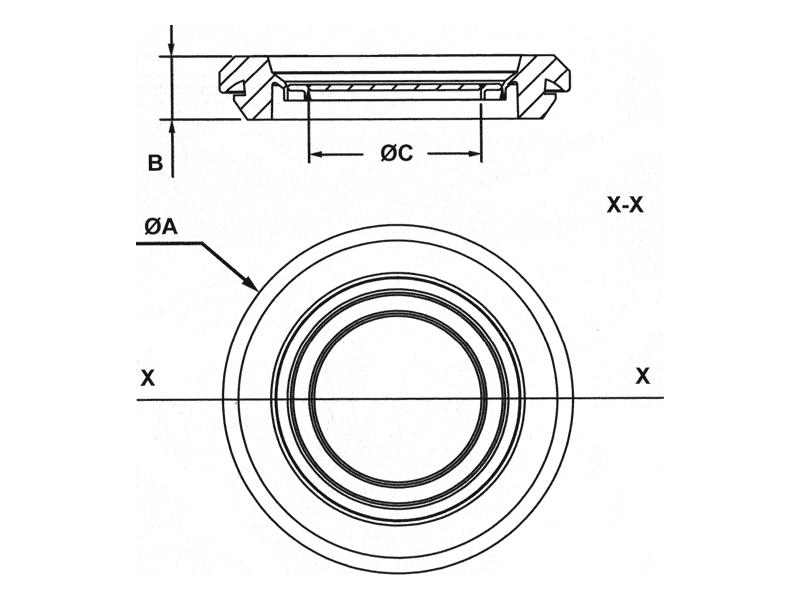

| Symbol | Mounting hole diameter | Panel thickness range | ØA | B | ØC | Material | Flammability | Color | Standard pack |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [szt./pcs] | ||||
| 16464PF019011 | 9 | 1.0 - 3.5 | 18 | 9 | 2.0 - 6.0 | TPE | - | black | 500 |
| 16464PF117035 | 9 | 1.0 - 3.5 | 18 | 9 | 2.0 - 6.0 | TPE | - | grey | 500 |
| 16464PV02 | 9 | 1.0 - 3.5 | 18 | 9 | 2.0 - 6.0 | TPE | UL94 V-0 | white | 500 |
| 22000PF019011 | 12 | 1.5 - 4.5 | 22 | 11 | 3.0 - 7.0 | TPE | - | black | 500 |
| 22000PF117035 | 12 | 1.5 - 4.5 | 22 | 11 | 3.0 - 7.0 | TPE | - | grey | 500 |
| 22000PV02 | 12 | 1.5 - 4.5 | 22 | 11 | 3.0 - 7.0 | TPE | UL94 V-0 | white | 500 |
| 22001PF019011 | 16 | 1.5 - 4.5 | 23.5 | 11 | 5.0 - 10.0 | TPE | - | black | 500 |
| 22001PF117035 | 16 | 1.5 - 4.5 | 23.5 | 11 | 5.0 - 10.0 | TPE | - | grey | 500 |
| 22001PV02 | 16 | 1.5 - 4.5 | 23.5 | 11 | 5.0 - 10.0 | TPE | UL94 V-0 | white | 500 |
| 22002PF019011 | 20 | 1.5 - 4.5 | 27.5 | 11 | 5.0 - 12.0 | TPE | - | black | 500 |
| 22002PF117035 | 20 | 1.5 - 4.5 | 27.5 | 11 | 5.0 - 12.0 | TPE | - | grey | 500 |
| 22002PV02 | 20 | 1.5 - 4.5 | 27.5 | 11 | 5.0 - 12.0 | TPE | UL94 V-0 | white | 500 |
| 16465PF019011 | 23 | 1.5 - 4.5 | 32.5 | 11 | 10.0 - 14.0 | TPE | - | black | 500 |
| 16465PF117035 | 23 | 1.5 - 4.5 | 32.5 | 11 | 10.0 - 14.0 | TPE | - | grey | 500 |
| 16465PV02 | 23 | 1.5 - 4.5 | 32.5 | 11 | 10.0 - 14.0 | TPE | UL94 V-0 | white | 500 |
| 22003PF019011 | 25 | 1.5 - 4.5 | 32.5 | 11 | 8.0 - 15.0 | TPE | - | black | 500 |
| 22003PF117035 | 25 | 1.5 - 4.5 | 32.5 | 11 | 8.0 - 15.0 | TPE | - | grey | 500 |
| 22003PV02 | 25 | 1.5 - 4.5 | 32.5 | 11 | 8.0 - 15.0 | TPE | UL94 V-0 | white | 500 |
| 22004PF019011 | 32 | 1.5 - 4.5 | 44 | 15 | 14.0 - 20.0 | TPE | - | black | 400 |
| 22004PF117035 | 32 | 1.5 - 4.5 | 44 | 15 | 14.0 - 20.0 | TPE | - | grey | 400 |
| 22004PV02 | 32 | 1.5 - 4.5 | 44 | 15 | 14.0 - 20.0 | TPE | UL94 V-0 | white | 400 |
| 22005PF019011 | 40 | 1.5 - 5.5 | 53 | 15 | 20.0 - 28.0 | TPE | - | black | 250 |
| 22005PF117035 | 40 | 1.5 - 5.5 | 53 | 15 | 20.0 - 28.0 | TPE | - | grey | 250 |
| 22005PV02 | 40 | 1.5 - 5.5 | 53 | 15 | 20.0 - 28.0 | TPE | UL94 V-0 | white | 250 |
| 22006PF019011 | 50 | 1.5 - 5.5 | 65 | 21 | 27.0 - 35.0 | TPE | - | black | 150 |
| 22006PF117035 | 50 | 1.5 - 5.5 | 65 | 21 | 27.0 - 35.0 | TPE | - | grey | 150 |
| 22006PV02 | 50 | 1.5 - 5.5 | 65 | 21 | 27.0 - 35.0 | TPE | UL94 V-0 | white | 150 |
| 22007PF019011 | 60 | 1.5 - 5.5 | 71 | 21 | 15.0 - 45.0 | TPE | - | black | 100 |
| 22007PF117035 | 60 | 1.5 - 5.5 | 71 | 21 | 15.0 - 45.0 | TPE | - | grey | 100 |
| 22007PV02 | 60 | 1.5 - 5.5 | 71 | 21 | 15.0 - 45.0 | TPE | UL94 V-0 | white | 100 |
| 22008PF019011 | 80 | 1.5 - 5.5 | 93 | 25 | 20.0 - 60.0 | TPE | - | black | 50 |
| 22008PF117035 | 80 | 1.5 - 5.5 | 93 | 25 | 20.0 - 60.0 | TPE | - | grey | 50 |
| 22008PV02 | 80 | 1.5 - 5.5 | 93 | 25 | 20.0 - 60.0 | TPE | UL94 V-0 | white | 50 |
| 16466PF019011 | 100 | 1.5 - 5.5 | 122 | 20 | 52.0 - 85.0 | TPE | - | black | 50 |
| 16466PF117035 | 100 | 1.5 - 5.5 | 122 | 20 | 52.0 - 85.0 | TPE | - | grey | 50 |
| 16466PV02 | 100 | 1.5 - 5.5 | 122 | 20 | 52.0 - 85.0 | TPE | UL94 V-0 | white | 50 |
| 12266PF019011 | 120 | 1.5 - 6.0 | 142 | 26 | 70.0 - 100.0 | TPE | - | black | 20 |
| 12266PF117035 | 120 | 1.5 - 6.0 | 142 | 26 | 70.0 - 100.0 | TPE | - | grey | 20 |
| 12266PV02 | 120 | 1.5 - 6.0 | 142 | 26 | 70.0 - 100.0 | TPE | UL94 V-0 | white | 20 |
