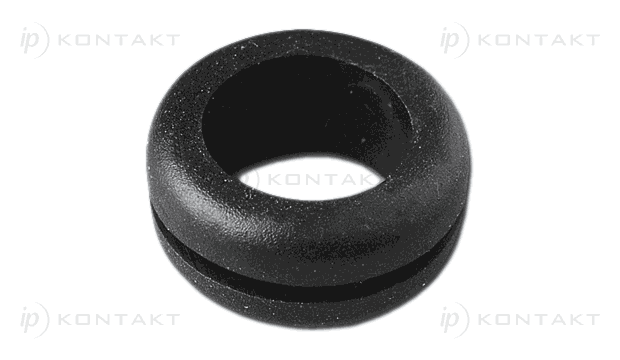

Gumowa przelotka kablowa
ST-52-2
- Material: PVC
- Color: white -WH, black -BLK
| Symbol |
Mounting hole diameter A |
Panel thickness B |
Ext. diameter D |
Int. diameter d |
Height H |
Material | Color |
|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | |||
| IPS-52-2-6206-BLK | 11 | 1 | 14 | 8 | 6 | PVC | black |
| IPS-52-2-6206-WH | 11 | 1 | 14 | 8 | 6 | PVC | white |
| IPS-52-2-6222-BLK | 10 | 1.5 | 14.5 | 8 | 6 | PVC | black |
| IPS-52-2-6203/8-BLK | 12 | 1.5 | 17 | 8 | 7 | PVC | black |
| IPS-52-2-6215/8-BLK | 15 | 1.5 | 18.5 | 8 | 8 | PVC | black |
| IPS-52-2-6222-WH | 10 | 1.5 | 14.5 | 8 | 6 | PVC | white |
| IPS-52-2-6203/8-WH | 12 | 1.5 | 17 | 8 | 7 | PVC | white |
| IPS-52-2-6215/8-WH | 15 | 1.5 | 18.5 | 8 | 8 | PVC | white |
| IPS-52-2-6233/8-BLK | 10 | 2 | 14 | 8 | 8 | PVC | black |
| IPS-52-2-6234/8-BLK | 15 | 2 | 20.5 | 8 | 7 | PVC | black |
| IPS-52-2-6233/8-WH | 10 | 2 | 14 | 8 | 8 | PVC | white |
| IPS-52-2-6234/8-WH | 15 | 2 | 20.5 | 8 | 7 | PVC | white |
| IPS-52-2-6204/8-BLK | 11.5 | 3 | 14.5 | 8 | 11 | PVC | black |
| IPS-52-2-6204/8-WH | 11.5 | 3 | 14.5 | 8 | 11 | PVC | white |
| IPS-52-2-6223-BLK | 10 | 6 | 15 | 8 | 12 | PVC | black |
| IPS-52-2-6223-WH | 10 | 6 | 15 | 8 | 12 | PVC | white |
| IPS-52-2-6205/9-BLK | 11 | 0.5 | 16 | 9 | 6 | PVC | black |
| IPS-52-2-6205/9-WH | 11 | 0.5 | 16 | 9 | 6 | PVC | white |
| IPS-52-2-6203/9-BLK | 12 | 1.5 | 17 | 9 | 7 | PVC | black |
| IPS-52-2-6203/9-WH | 12 | 1.5 | 17 | 9 | 7 | PVC | white |
| IPS-52-2-6204/9-BLK | 11.5 | 3 | 14.5 | 9 | 11 | PVC | black |
| IPS-52-2-6204/9-WH | 11.5 | 3 | 14.5 | 9 | 11 | PVC | white |
| IPS-52-2-6203/10-BLK | 12 | 1.5 | 17 | 10 | 7 | PVC | black |
| IPS-52-2-6215/10-BLK | 15 | 1.5 | 18.5 | 10 | 8 | PVC | black |
| IPS-52-2-6203/10-WH | 12 | 1.5 | 17 | 10 | 7 | PVC | white |
| IPS-52-2-6215/10-WH | 15 | 1.5 | 18.5 | 10 | 8 | PVC | white |
| IPS-52-2-6220/10-BLK | 13.5 | 2 | 17.5 | 10 | 7 | PVC | black |
| IPS-52-2-6220/10-WH | 13.5 | 2 | 17.5 | 10 | 7 | PVC | white |
| IPS-52-2-6204/10-BLK | 11.5 | 3 | 14.5 | 10 | 11 | PVC | black |
| IPS-52-2-6204/10-WH | 11.5 | 3 | 14.5 | 10 | 11 | PVC | white |
| IPS-52-2-6215/11-BLK | 15 | 1.5 | 18.5 | 11 | 8 | PVC | black |
| IPS-52-2-6215/11-WH | 15 | 1.5 | 18.5 | 11 | 8 | PVC | white |
| IPS-52-2-6234/11-BLK | 15 | 2 | 20.5 | 11 | 7 | PVC | black |
| IPS-52-2-6234/11-WH | 15 | 2 | 20.5 | 11 | 7 | PVC | white |
| IPS-52-2-6215/12-BLK | 15 | 1.5 | 18.5 | 12 | 8 | PVC | black |
| IPS-52-2-6209/12-BLK | 15 | 1.5 | 19 | 12 | 8 | PVC | black |
| IPS-52-2-6215/12-WH | 15 | 1.5 | 18.5 | 12 | 8 | PVC | white |
| IPS-52-2-6209/12-WH | 15 | 1.5 | 19 | 12 | 8 | PVC | white |
| IPS-52-2-6234/12-BLK | 15 | 2 | 20.5 | 12 | 7 | PVC | black |
| IPS-52-2-6238/12-BLK | 18 | 2 | 23 | 12 | 8 | PVC | black |
| IPS-52-2-6234/12-WH | 15 | 2 | 20.5 | 12 | 7 | PVC | white |
| IPS-52-2-6238/12-WH | 18 | 2 | 23 | 12 | 8 | PVC | white |
| IPS-52-2-6215/13-BLK | 15 | 1.5 | 18.5 | 13 | 8 | PVC | black |
| IPS-52-2-6215/13-WH | 15 | 1.5 | 18.5 | 13 | 8 | PVC | white |
| IPS-52-2-6234/13-BLK | 15 | 2 | 20.5 | 13 | 7 | PVC | black |
| IPS-52-2-6238/13-BLK | 18 | 2 | 23 | 13 | 8 | PVC | black |
| IPS-52-2-6234/13-WH | 15 | 2 | 20.5 | 13 | 7 | PVC | white |
| IPS-52-2-6238/13-WH | 18 | 2 | 23 | 13 | 8 | PVC | white |
| IPS-52-2-6214/13-BLK | 14 | 3 | 20 | 13 | 9 | PVC | black |
| IPS-52-2-6214/13-WH | 14 | 3 | 20 | 13 | 9 | PVC | white |
| IPS-52-2-6238/14-BLK | 18 | 2 | 23 | 14 | 8 | PVC | black |
| IPS-52-2-6238/14-WH | 18 | 2 | 23 | 14 | 8 | PVC | white |
| IPS-52-2-6238/16-BLK | 18 | 2 | 23 | 16 | 8 | PVC | black |
| IPS-52-2-6211/16-BLK | 21 | 2 | 28 | 16 | 8 | PVC | black |
| IPS-52-2-6238/16-WH | 18 | 2 | 23 | 16 | 8 | PVC | white |
| IPS-52-2-6211/16-WH | 21 | 2 | 28 | 16 | 8 | PVC | white |
| IPS-52-2-6225/20-BLK | 24 | 2 | 32 | 19.5 | 8.5 | PVC | black |
| IPS-52-2-6225/20-WH | 24 | 2 | 32 | 19.5 | 8.5 | PVC | white |
| IPS-52-2-6224/22-BLK | 26 | 2 | 35 | 22 | 8.5 | PVC | black |
| IPS-52-2-6224/22-WH | 26 | 2 | 35 | 22 | 8.5 | PVC | white |
