Zatrzask drzwiowy
FP-9834
- Clip material: PC
- Pin material: Nylon 6
- Flammabilty: UL94V2
- Color: black, white
- Working temperature: -40°C do +90°C
- Standard pack: 1000 szt.
Producent: Fastpoint

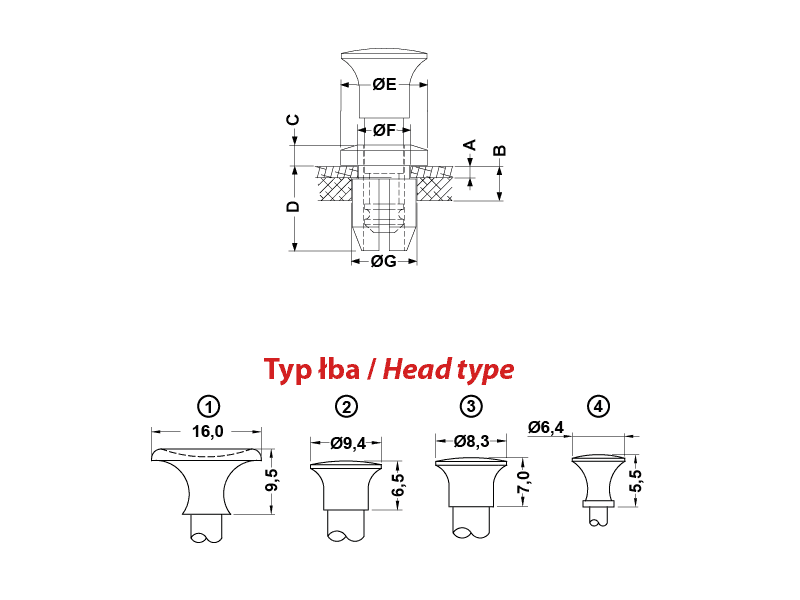

| Symbol | A | B | C | D | ØE | ØF | ØG | Kołek / Pin | Łeb / Head | Material | Flammability | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||||||
| 9834NC01 + 9849AA01 | 1.1 | 1.5 - 3.7 | 2 | 8.6 | 10.8 | 7.6 | 8.1 | 9849AA01 | 1 | PA 66 + PC | UL94 V-2 | black |
| 9834NC02 + 9849AA02 | 1.1 | 1.5 - 3.7 | 2 | 8.6 | 10.8 | 7.6 | 8.1 | 9849AA02 | 1 | PA 66 + PC | UL94 V-2 | white |
| 9835NC01 + 9849AA01 | 1.6 | 2.0 - 4.2 | 2 | 9 | 10.8 | 7.6 | 8.1 | 9849AA01 | 1 | PA 66 + PC | UL94 V-2 | black |
| 9835NC02 + 9849AA02 | 1.6 | 2.0 - 4.2 | 2 | 9 | 10.8 | 7.6 | 8.1 | 9849AA02 | 1 | PA 66 + PC | UL94 V-2 | white |
| 9836NC01 + 9850AA01 | 2.5 | 3.0 - 5.2 | 2 | 10 | 10.8 | 7.6 | 8.1 | 9850AA01 | 1 | PA 66 + PC | UL94 V-2 | black |
| 9836NC02 + 9850AA02 | 2.5 | 3.0 - 5.2 | 2 | 10 | 10.8 | 7.6 | 8.1 | 9850AA02 | 1 | PA 66 + PC | UL94 V-2 | white |
| 9837NC01 + 9851AA01 | 4.1 | 4.6 - 6.9 | 2 | 11.7 | 10.8 | 7.6 | 8.1 | 9851AA01 | 1 | PA 66 + PC | UL94 V-2 | black |
| 9837NC02 + 9851AA02 | 4.1 | 4.6 - 6.9 | 2 | 11.7 | 10.8 | 7.6 | 8.1 | 9851AA02 | 1 | PA 66 + PC | UL94 V-2 | white |
| 9838NC01 + 9852AA01 | 5.3 | 5.8 - 8.0 | 2 | 12.9 | 10.8 | 7.6 | 8.1 | 9852AA01 | 1 | PA 66 + PC | UL94 V-2 | black |
| 9838NC02 + 9852AA02 | 5.3 | 5.8 - 8.0 | 2 | 12 | 10.8 | 7.6 | 8.1 | 9852AA02 | 1 | PA 66 + PC | UL94 V-2 | white |
| 9834NC01 + 9845AA01 | 1.1 | 1.5 - 3.7 | 2 | 8.6 | 10.8 | 7.6 | 8.1 | 9845AA01 | 2 | PA 66 + PC | UL94 V-2 | black |
| 9834NC02 + 9845AA02 | 1.1 | 1.5 - 3.7 | 2 | 8.6 | 10.8 | 7.6 | 8.1 | 9845AA02 | 2 | PA 66 + PC | UL94 V-2 | white |
| 9835NC01 + 9845AA01 | 1.6 | 2.0 - 4.2 | 2 | 9 | 10.8 | 7.6 | 8.1 | 9845AA01 | 2 | PA 66 + PC | UL94 V-2 | black |
| 9835NC02 + 9845AA02 | 1.6 | 2.0 - 4.2 | 2 | 9 | 10.8 | 7.6 | 8.1 | 9845AA02 | 2 | PA 66 + PC | UL94 V-2 | white |
| 9836NC01 + 9846AA01 | 2.5 | 3.0 - 5.2 | 2 | 10 | 10.8 | 7.6 | 8.1 | 9846AA01 | 2 | PA 66 + PC | UL94 V-2 | black |
| 9836NC02 + 9846AA02 | 2.5 | 3.0 - 5.2 | 2 | 10 | 10.8 | 7.6 | 8.1 | 9846AA02 | 2 | PA 66 + PC | UL94 V-2 | white |
| 9837NC01 + 9847AA01 | 4.1 | 4.6 - 6.9 | 2 | 11.7 | 10.8 | 7.6 | 8.1 | 9847AA01 | 2 | PA 66 + PC | UL94 V-2 | black |
| 9837NC02 + 9847AA02 | 4.1 | 4.6 - 6.9 | 2 | 11.7 | 10.8 | 7.6 | 8.1 | 9847AA02 | 2 | PA 66 + PC | UL94 V-2 | white |
| 9838NC01 + 9848AA01 | 5.3 | 5.8 - 8.0 | 2 | 12.9 | 10.8 | 7.6 | 8.1 | 9848AA01 | 2 | PA 66 + PC | UL94 V-2 | black |
| 9838NC02 + 9848AA02 | 5.3 | 5.8 - 8.0 | 2 | 12 | 10.8 | 7.6 | 8.1 | 9848AA02 | 2 | PA 66 + PC | UL94 V-2 | white |
| 9839NC01 + 9853AA01 | 1.1 | 1.5 - 3.7 | 1.8 | 8 | 8.5 | 6 | 6.4 | 9853AA01 | 3 | PA 66 + PC | UL94 V-2 | black |
| 9839NC02 + 9853AA02 | 1.1 | 1.5 - 3.7 | 1.8 | 8 | 8.5 | 6 | 6.4 | 9853AA02 | 3 | PA 66 + PC | UL94 V-2 | white |
| 8239NC01 + 8240AA01 | 1.6 | 2.0 - 4.2 | 1.8 | 8.5 | 8.5 | 6 | 6.4 | 8240AA01 | 3 | PA 66 + PC | UL94 V-2 | black |
| 8239NC02 + 8240AA02 | 1.6 | 2.0 - 4.2 | 1.8 | 8.5 | 8.5 | 6 | 6.4 | 8240AA02 | 3 | PA 66 + PC | UL94 V-2 | white |
| 9841NC01 + 9855AA01 | 2.5 | 3.0 - 5.2 | 1.8 | 9.5 | 8.5 | 6 | 6.4 | 9855AA01 | 3 | PA 66 + PC | UL94 V-2 | black |
| 9841NC02 + 9855AA02 | 2.5 | 3.0 - 5.2 | 1.8 | 9.5 | 8.5 | 6 | 6.4 | 9855AA02 | 3 | PA 66 + PC | UL94 V-2 | white |
| 9842NC01 + 9856AA01 | 4.1 | 4.6 - 6.9 | 1.8 | 11 | 8.5 | 6 | 6.4 | 9856AA01 | 3 | PA 66 + PC | UL94 V-2 | black |
| 9842NC02 + 9856AA02 | 4.1 | 4.6 - 6.9 | 1.8 | 11 | 8.5 | 6 | 6.4 | 9856AA02 | 3 | PA 66 + PC | UL94 V-2 | white |
| 9843NC01 + 9857AA01 | 1 | 2.0 - 4.0 | 1.2 | 7.6 | 6.5 | 4.6 | 4.8 | 9857AA01 | 4 | PA 66 + PC | UL94 V-2 | black |
| 9843NC02 + 9857AA02 | 1 | 2.0 - 4.0 | 1.2 | 7.6 | 6.5 | 4.6 | 4.8 | 9857AA02 | 4 | PA 66 + PC | UL94 V-2 | white |
| 9844NC01 + 9858AA01 | 1.5 | 2.5 - 4.5 | 1.2 | 8.1 | 6.5 | 4.6 | 4.8 | 9858AA01 | 4 | PA 66 + PC | UL94 V-2 | black |
| 9844NC02 + 9858AA02 | 1.5 | 2.5 - 4.5 | 1.2 | 8.1 | 6.5 | 4.6 | 4.8 | 9858AA02 | 4 | PA 66 + PC | UL94 V-2 | white |
